Fibonacci retracements are levels displayed from two price points using Fibonacci ratios, specific numbers obtained from the Fibonacci sequence. Users can display up to 5 customizable Fibonacci retracements from one upper and one lower extremities users can select from a wide variety of feature included in the toolkit.

​
Possible Extremities

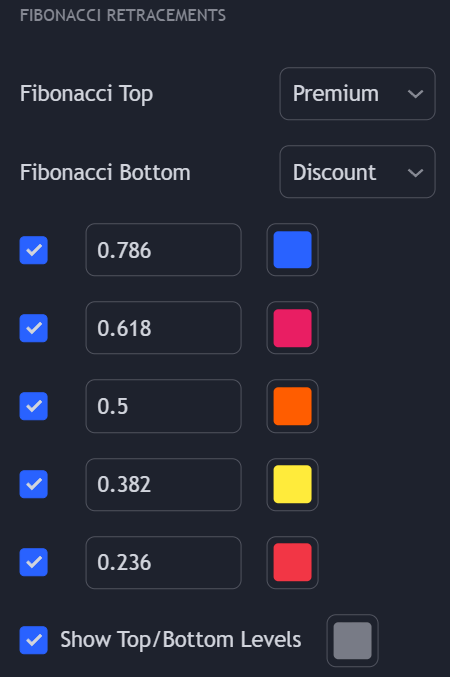

The upper/lower extremities used to construct the Fibonacci retracements can be selected from the “Fibonacci Top” or “Fibonacci Bottom” dropdown settings, and can be obtained from the following features within the Price Action Concepts® toolkit:
Selecting “None” for “Fibonacci Top” or “Fibonacci Bottom” will hide the retracements.

​
Ratios

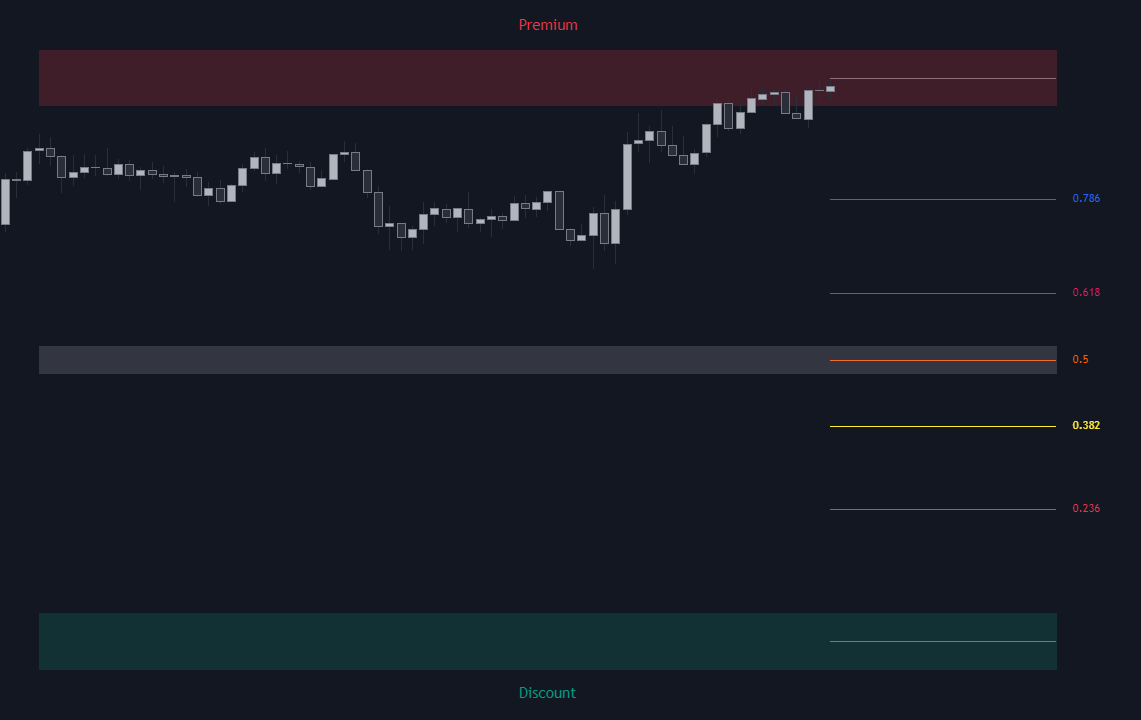

Users can control which levels are displayed as well as the ratio used for each level. Ratios are also visible to the right side of each retracement displayed.

​
Anchor To Origin

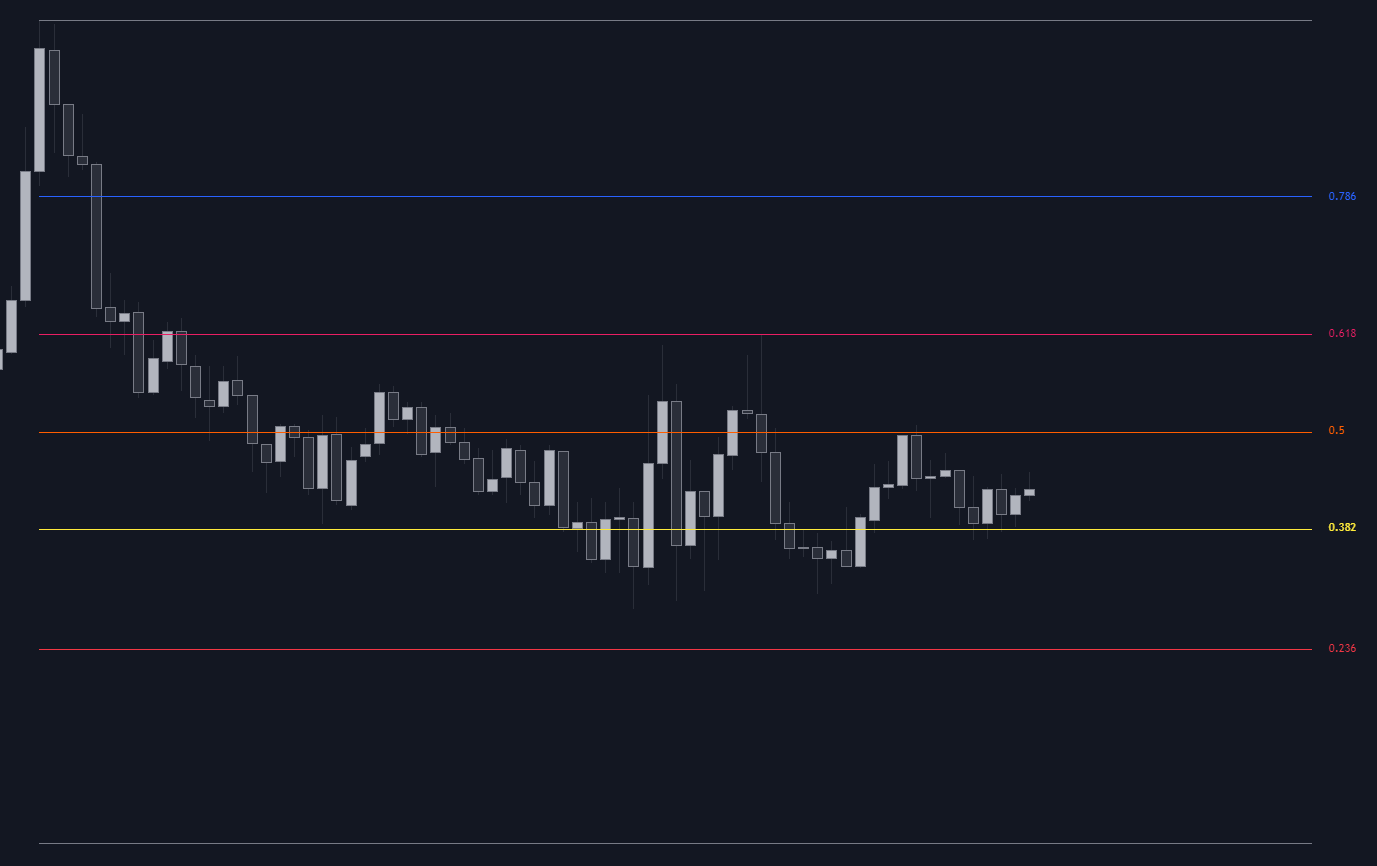

By default, the levels are anchored from the most recent bar and extend 20 bars ahead. By enabling “Anchor To Origin” users can anchor retracement levels to a point of origin related to the selected extremities in “Fibonacci Top” and “Fibonacci Bottom”. Based on the selected extremity, the anchor point will be the following:
ExtremityAnchor
Swing HighSwing High Location
Swing LowSwing Low Location
Internal HighInternal High Location
Internal LowInternal Low Location
Premium / Equilibrium Average / DiscountOldest anchor between Swing High and Swing Low Locations
Only the above extremities are compatible with “Anchor To Origin”.
If “Fibonacci Top” and “Fibonacci Bottom” are different, the anchor point will be the oldest location between the two.
