VWAP Bands from candle volume. Works on every market.

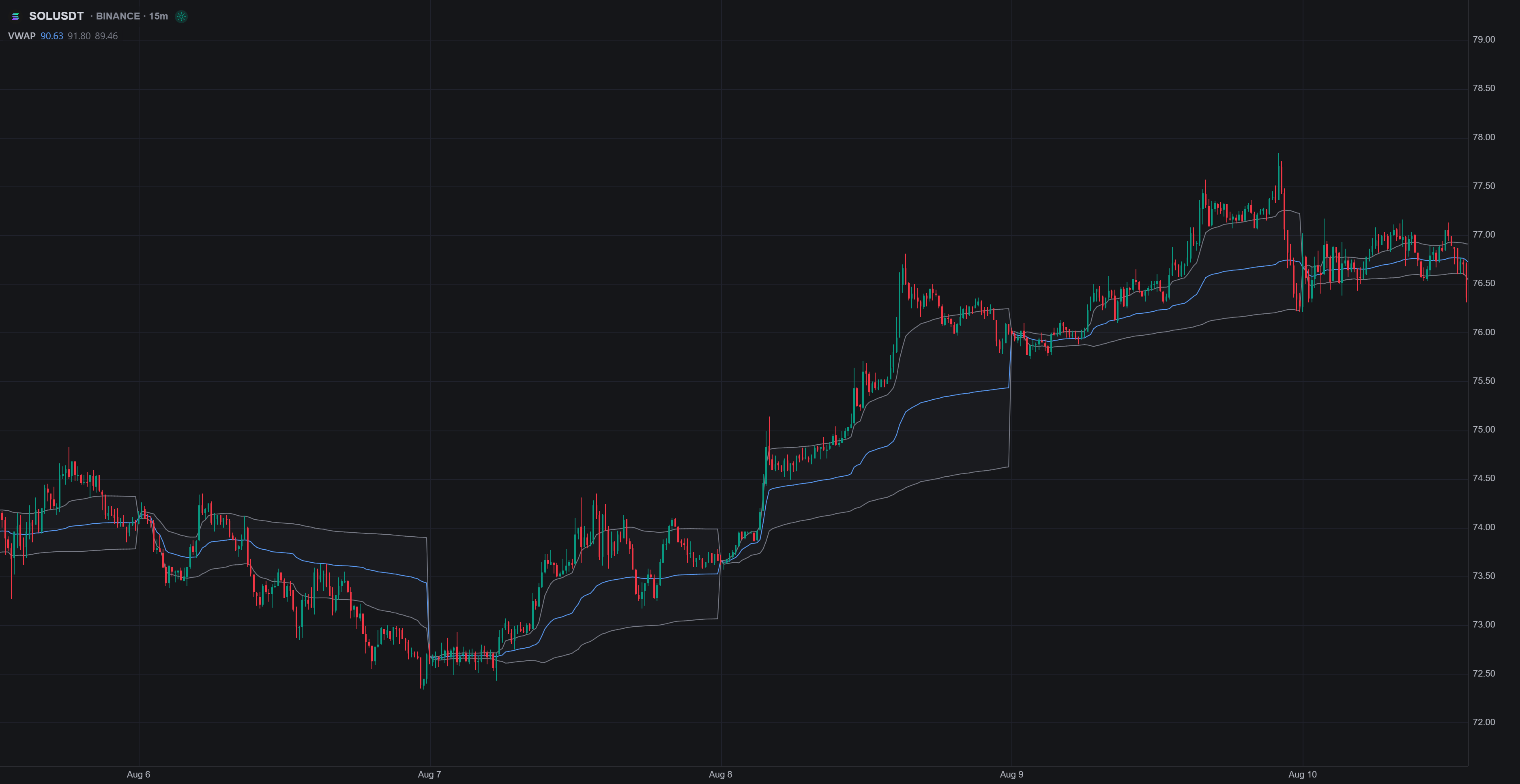

Volume Weighted Average Price (VWAP Bands) plots the average price paid over the anchored window, weighted by volume (the fair-value line institutions benchmark against), with up to three standard-deviation band pairs around it.
It uses candle price and volume, so it works on every market, including forex and commodities. Add VWAP from the indicator library.

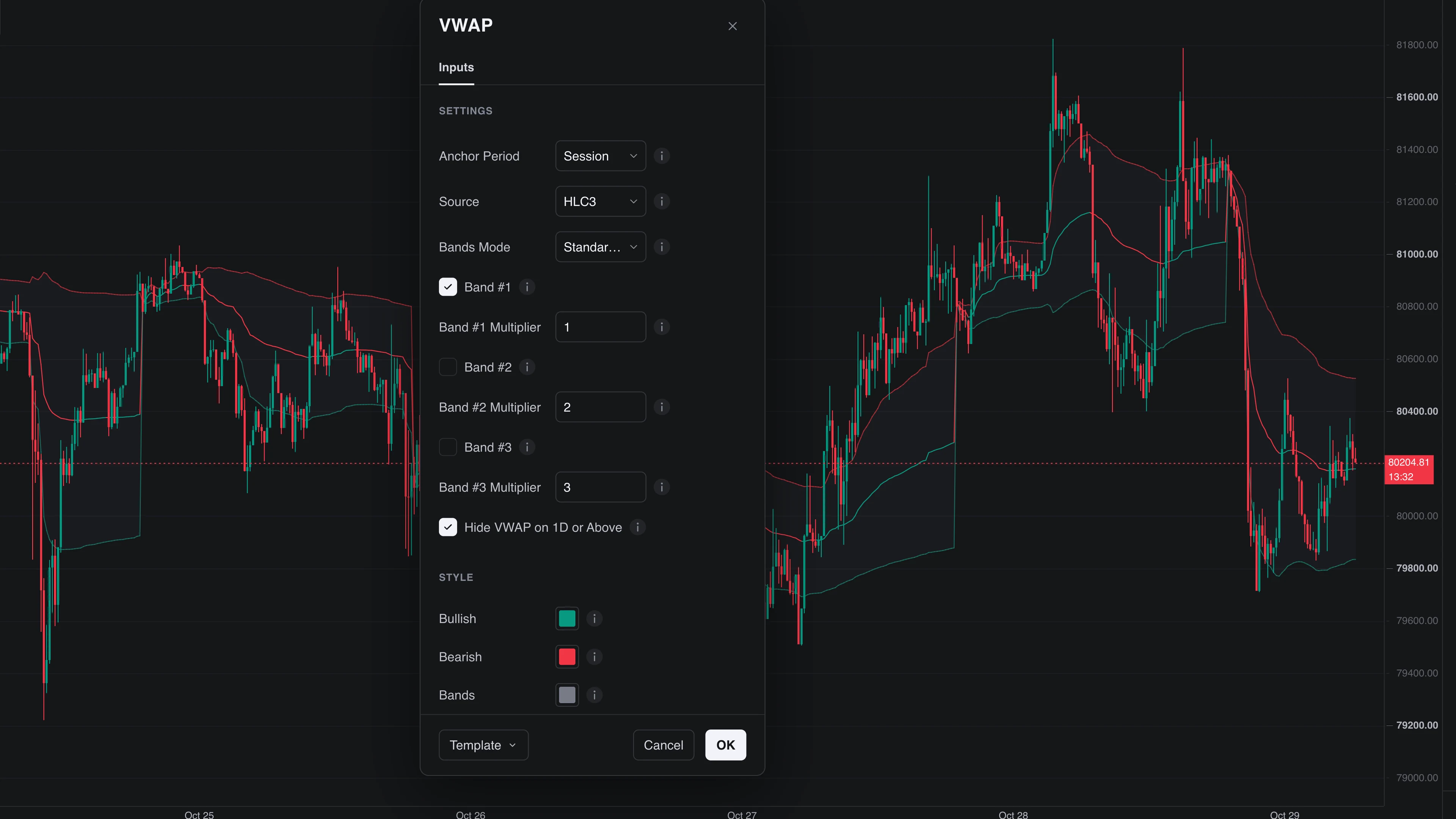

Settings
- Anchor Period: determines when the average restarts. The example uses Session.
- Source: the per-bar price the average weights: HLC3 (default), OHLC4, or Close.
- Bands Mode and Bands 1–3: choose the band mode, enable each band, and adjust its multiplier. The example has Band 1 enabled and Bands 2 and 3 disabled.
- Hide VWAP on 1D or Above: hide the indicator on daily and higher timeframes.

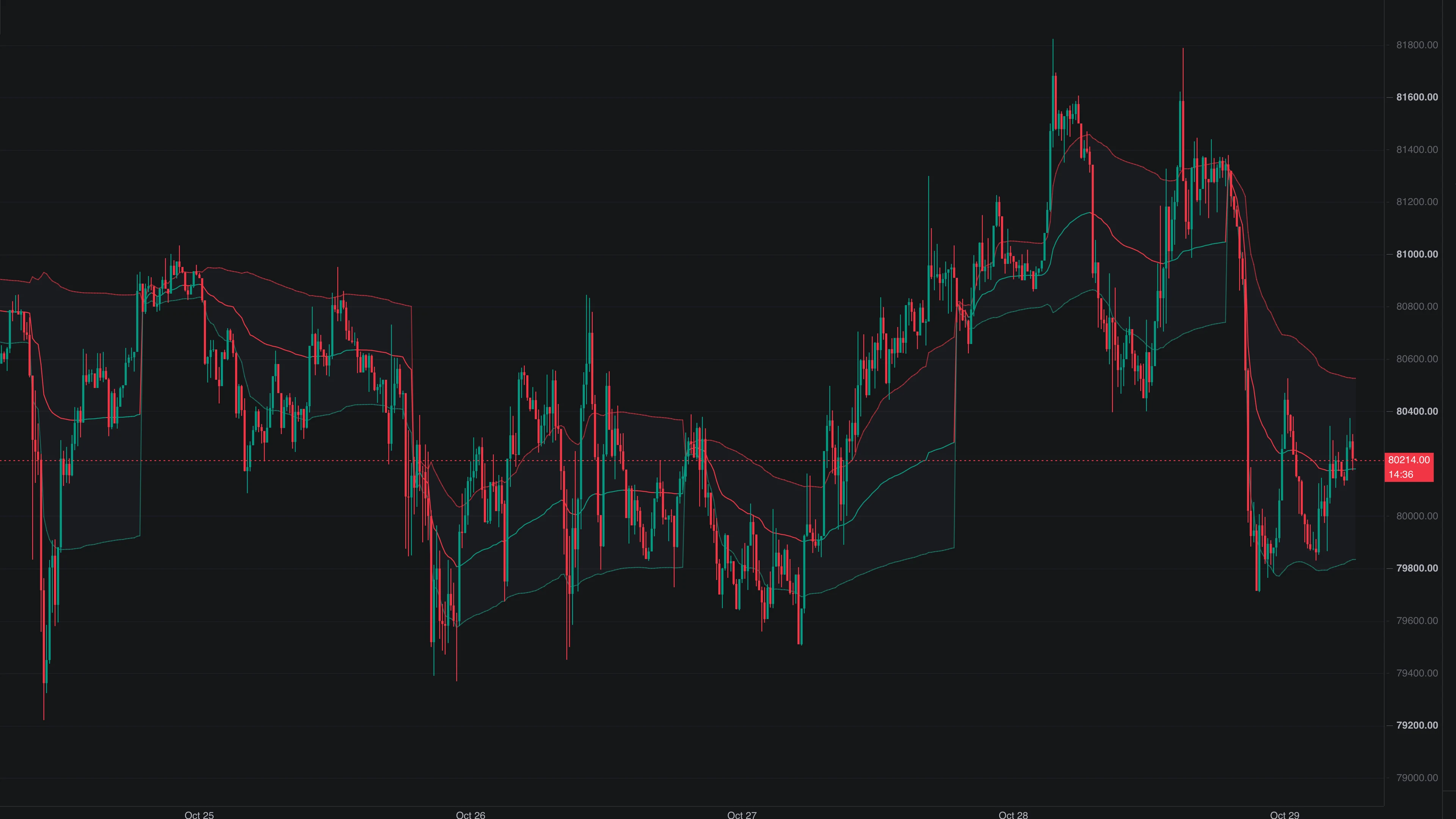

Reading it
Price above VWAP means the average participant in the window is in profit on longs; extended moves toward the outer bands mark statistically stretched prices for that session. The bands are recomputed from the anchor, so a fresh day's bands start tight and widen as the session accumulates data.
